Hey guys. I just purchased my first jeep and am totally stoked on it. She came with the hard top and soft top but unfortunately I didnt have the girl who sold me the car show me how to put the soft top on (thought I could figure it out myself..., Ha!). Anyway, I have all the hardware sitting out and staring at it for an hour just doesnt work. Was wondering if anyone knew of somewhere I could look online for 'softtop for dummies instructions'. Ive looked everywhere I can think of and have come up with zero. Ill certainly appreciate any and all help. Thanks.
Newb here. Need help on my soft top please...
- Thread starter FishJeep
- Start date
SteelHeadz
Super Moderator
Would this help?

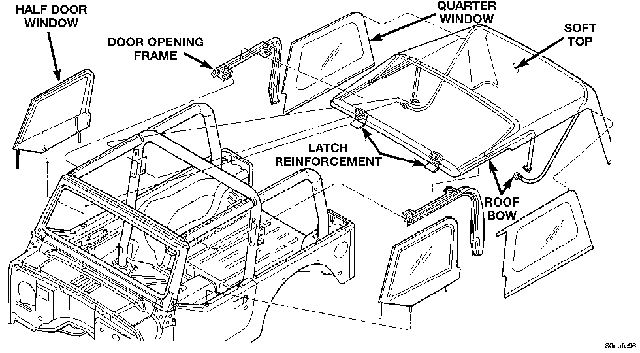

INSTALLATION
INSTALLATION
- Position the top on the vehicle.
- Install the screws attaching the roof bows to the pivot bracket. (The front bow is attached to the pivot bracket on the upper outward location).
- Raise the top.
- Position latch in windshield frame.
- Install the quarter windows.
- Working from front to rear, engage the J-straps attaching the quarter window to the body.
- Install rear window.
- Engage drip rail retainers above door opening frame.
- Working from front to rear, engage J-straps at soft top rear corners.
- Engage the retainers attaching the rear window to the body.
- Close latch at windshield frame
Attachments
DIY4X4
New member
If its a Bestop, you can download the installation instructions from their website:
How To Install - Tops and Accessories for Jeep & GM, Ford, Dodge Trucks by Bestop
P.S. The first time is always the hardest. Lol.
How To Install - Tops and Accessories for Jeep & GM, Ford, Dodge Trucks by Bestop
P.S. The first time is always the hardest. Lol.
That is awesome, exactly what I was looking for. Thanks a lot....why didnt I think of that?!?!
Cool, she's on. Now I can pull it out of the garage, and my ears will get a rest from the wife.
