JK 20" Pro Series Light Bar and Grill Mount

Allen's Offroad

New member
This item usually ships within 1-2 business days. $249.95 Shipped in lower 48 US!

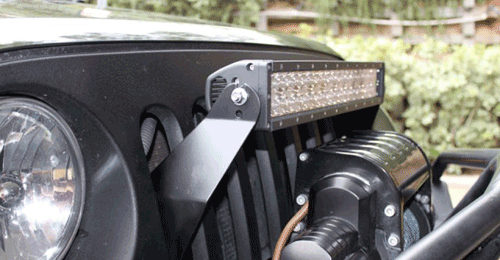

The first of its kind through the grill light bar mount. The SFZ Grill Mount positions a 20-21 inch light bar in the perfect location. Out of the airflow for the radiator, below the hood line to reduce glare and at a similar height as the main headlights to augment lighting patterns.

Click on either image to order!





The first and only light mount to be mounted in a "through the grill" location.
Mounts in existing factory holes.
Does not obstruct the drivers view as it sits below the front hood line.
Does not create glare at night due to hood reflections.
Does not obstruct airflow to the radiator as it sits above the radiator grill opening.
Comes in black powder coating.
Fits single or dual row 19" to 22" bar. (20-21" is the sweet spot, wider or narrower lights may require adjusting the mount)
Easy installation using existing holes (early model JK may require light drilling to enlarge a hole for the nutserts which are included in the installation kit.)
UPC: 670045269351
Installation Instructions Here

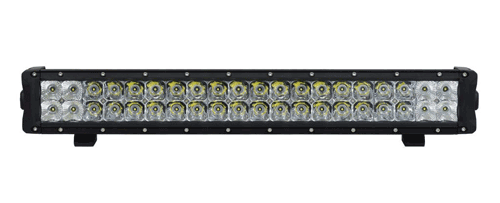

Pro Series II 20" Dual Row LED Bar

All new for 2018. The reintroduction of Inspired Pro Series II LED bars.

They have been working on, designing these lights for over a year. Designed from scratch to be and industry leading light bar, with quality, and light output second to none. Do not let the price fool you, these lights are bright, and contain many industry leading components.

They designed these completely from scratch to be as stealth as possible, being only 2.5" deep at is deepest spot. The new design also helps reduce wind noise associated with light bars. You get a more integrated, quieter, and cleaner looking light bar,

Utilizing all new OSRAM LED technology, along with updated optics, they produce more light per watt than their previous models , with new optics, allowing you to take full advantage of the power. They are IP68 Water and dust resistant, with an integrated pressure equalizer breather valve.

As with all of their lights, these are built with a mixed, flood and spot pattern.

Wire harness with switch, relay and fuse is included, and all lights have their all newest water resistant Deutsch connector.

Specs:

120W total power
3 watt OsramLEDS
Available in mixed pattern
Lifetime Warranty
Durable Polycarbonate Lens.
Sturdy cast Aluminum Housing
60,000+ Hour Lifespan
Waterproof IP68 Certified
Water Resistant connector harness
Turn on and off instantly, Unlike HID, no need to warm up
Versatile usage, from 4x4, Marine, ATV, and many others!
Protected from over and under volt delivery
Compatible with 12 volt and 24 volt systems
Stainless steel mounting hardware and bracket
6000K color temperature
2.6 amps at 24 volts
Light output: 8245 lumen
